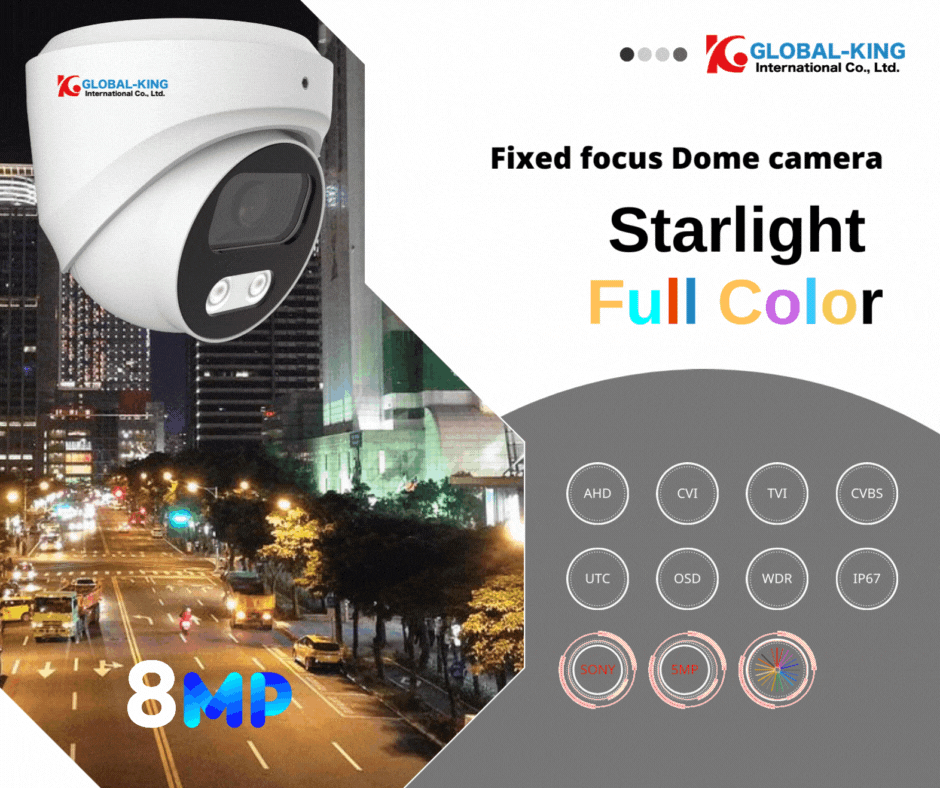

8MP Starlight Full Color Fixed Dome Camera
Feature

✅ Video Output Mode:8MP(AHD/TVI/CVI)@15fps
✅ 1/2.8” SONY Starvis Back-illuminated CMOS sensor
✅ Support Warm white (4000K)|Light Distance:up to 30m
✅ 3.6mm fixed lens|optional:2.8 /6.0 mm
✅ Support OSD Menu
✅ Support WDR
✅ Housing:Metal|IP67

Specification
Model:GK7080FC-CMSB3-2LESL
Image Sensor:1/2.8" SONY Starvis Back-illuminated CMOS Sensor
Master chip:Eyenix EN772 High Performance ISP
Image Resolution:8M:3840x2160|5M:2592x1944|4M:2560x1440|2M:1920x1080
Video Output Mode:AHD:8M@15fps|5M@20fps/12.5fps|4M/2M@30fps/25fps;
CVI:8M@15fps/12.5fps|4M/2M@30fps/25fps
TVI:8M@15fps/12.5fps|5M@20fps/12.5fps|4M/2M@30fps/25fps
TV System:NTSC|PAL
Electronic Shutter:Auto
Minimum Illumination:0.005Lux
Scanning System:Progressive  Scan
Focus Length:3.6 mm|optional:2.8 /6.0 mm
Focus Control:Fixed
Lens Type:Fixed
IR Cut Filter:YES
Infrared LED:Support Warm white (4000K)
Light Distance:30M
IR Status:AGC auto control
Starlight:Support
Day/Night:ON|OFF
OSD Menu:Support
WDR:Support
UTC:Support
Noise Reduction:AI-DNR
Gain Control:Auto
White Balance:AUTO|MANUAL
Coaxial Audio:No
Material/Color:Metal|White
Waterproof:IP67
Bracket:Yes
Operation Temperature:-10ºC~60ºC|RH50% Max
Storage Temperature:-20ºC~60ºC|RH50% Max
Power Source:DC12V ±10% 450mA
Dimension:⌀ 96 x 91(H) mm
Weight:600g
Certification:CE|FCC|IP67
