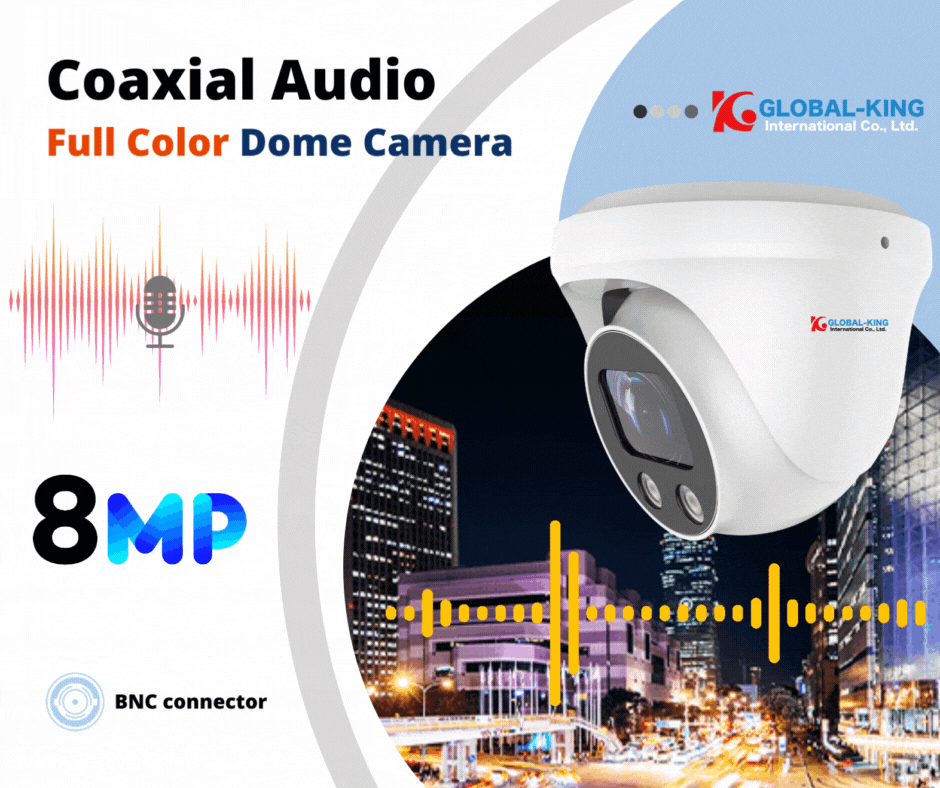

8MP Starlight Full-color Coaxial Fixed Dome Camera
Feature

✅ Video Output Mode:8MP(AHD/TVI/CVI)@15/12.5fps
✅ 1/2.5” Low illumination back-illuminated K17 CMOS sensor
✅ Support Warm white (4000K)|Light Distance:up to 30m
✅ 3.6mm fixed lens|optional:2.8 /6.0 mm
✅ Support starlight full color
✅ Support coaxial audio|built-in microphone
✅ Support OSD Menu
✅ Support WDR
✅ Housing:Metal|IP67

Specification
Model:GK7080AOC-CMLB3-2LFKE
Image Sensor:1/2.5” Low illumination back-illuminated K17 CMOS sensor
Master chip:Fullhan FH8538E 8M High Performance ISP
Image Resolution:8M:3840x2160|5M:2592x1944|4M:2560x1440|2M:1920x1080
Video Output Mode:AHD/TVI:8M@15/12.5fps|5M@20/12.5fps|4M@30/20/15fps|2M@30/20fps
CVI:8M@15/12fps|5M@20/12.5fps|4M@30/25fps|2M@30/25fps
TV System:NTSC|PAL
Electronic Shutter:Auto
Minimum Illumination:0.01Lux
Scanning System:Progressive  Scan
Focus Length:3.6 mm|optional:2.8 /6.0 mm
Focus Control:Fixed
Lens Type:Fixed
IR Cut Filter:YES
Infrared LED:Support Warm white (4000K)
Light Distance:30M
IR Status:AGC auto control
Starlight:Support
Day/Night:Full color|Black and white
OSD Menu:Support
WDR:Support
UTC:Support
Noise Reduction:AI-DNR
White Balance:AUTO|MANUAL
Gain Control:Auto
Audio Input:Built-in microphone
Coaxial Audio:Support
Material/Color:Metal|White
Waterproof:IP67
Bracket:NO
Operation Temperature:-30ºC~50ºC|RH50% Max
Storage Temperature:-20ºC~60ºC|RH50% Max
Power Source:DC12V ±10% 450mA
Dimension:⌀ 128 x 108(H) mm
Weight:800g
Certification:CE|FCC|IP67
